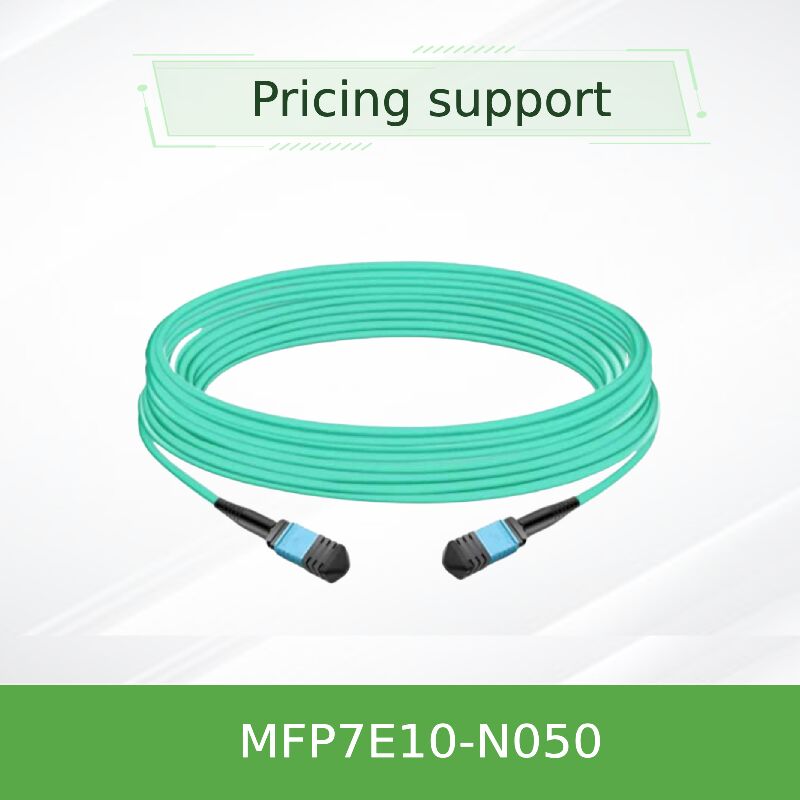

NVIDIA mellanox MFP7E10-N050 50m MPO-12/APC Multimode Fiber Cable OM4 Type-B for 800G/400G
Λεπτομέρειες:
| Μάρκα: | Mellanox |
| Αριθμό μοντέλου: | MFP7E10-N050 (980-9I57Y-00N050) |
| Έγγραφο: | MFP7E10-Nxxx.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 τεμ |
|---|---|
| Τιμή: | Negotiate |
| Συσκευασία λεπτομέρειες: | Εξωτερικό κουτί |
| Χρόνος παράδοσης: | Βασισμένο στο αποθεματικό |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | Προμήθεια ανά έργο/παρτίδα |
|
Λεπτομερής ενημέρωση |
|||
| Μοντέλο: | MFP7E10-N050 | Μήκος: | 50 Μ |
|---|---|---|---|
| Τύπος ινών: | Πολυτροπικό OM4 | Συνδέσεις: | MPO-12/APC (θηλυκό) |
| Απώλεια εισαγωγής: | ≤ 0,37 dB | Απώλεια επιστροφής: | ≥ 35 dB |
| Επισημαίνω: | Mellanox OM4 multimode fiber cable,NVIDIA Mellanox 50m MPO-12 cable,800G 400G fiber optic cable |
||
Περιγραφή προϊόντων
NVIDIA MFP7E10-N050 50m MPO-12/APC to MPO-12/APC multimode fiber cable with 8 active fibers—engineered for long-distance 800G twin-port OSFP and 400G QSFP112 optical transceivers in large-scale InfiniBand NDR and 400GbE data center fabrics.
- MPO-12/APC female to MPO-12/APC female, 8-fiber Type-B crossover configuration
- 50-meter length with 3.0mm diameter, LSZH aqua jacket (OM4 multimode)
- Maximum specified reach for multimode fiber with NVIDIA optical transceivers
- Angled Physical Contact (APC) 8° polish for minimal back reflection
- Insertion loss ≤0.35 + 0.0004*L dB, Return loss ≥35dB
- 8-Fiber Type-B Crossover: Fiber 1 connects to fiber 12 at opposite end—ensuring correct Tx-to-Rx alignment for optical transceivers.
- APC Polish: 8-degree angled end face reduces back reflections, critical for signal integrity at 100G PAM4 per lane over maximum distances.
- OM4 Multimode Fiber: 50/125µm fibers optimized for 50m reach with low insertion loss; aqua jacket for easy identification.
- LSZH Jacket: Low Smoke Zero Halogen material for enhanced safety in data center environments.
- Rigorous Testing: 100% insertion loss and return loss tested for reliable out-of-box performance.
The MFP7E10-N050 complies with IEC 61754-7 (MPO connector family), GR-1435, and ANSI/TIA/EIA 604-5. It uses 8 active multimode fibers (50/125µm OM4) with APC 8° polish. The Type-B crossover wiring ensures correct Tx-to-Rx alignment per transceiver pinouts. Suitable for InfiniBand NDR, 400GbE, and NVLink protocols when used with compatible optical modules (MMA4Z00-NS, MMA1Z00-NS).
In a twin-port OSFP 800G transceiver, two 4-lane optical interfaces transmit and receive over separate fibers. The MFP7E10-N050 uses a Type-B crossover scheme: fiber 1 at end A connects to fiber 12 at end B, fiber 2 to fiber 11, etc. This ensures that the transmit laser from lane 1 aligns with the photodetector of lane 12 at the far end. The 8° angled polish (APC) directs any reflected light away from the laser cavity, preventing signal distortion and maintaining low bit error rates at 100G PAM4 per lane over the full 50-meter reach.

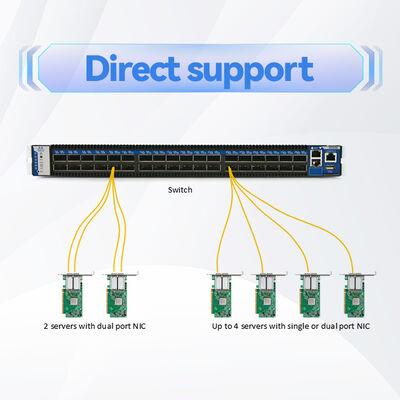

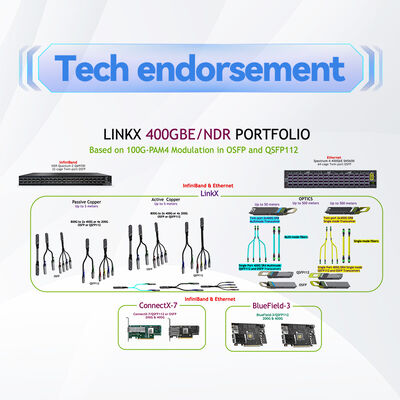

- Quantum-2 Switch to Switch: Connect twin-port OSFP 800G switches across multiple rows up to 50m apart.
- Switch to ConnectX-7/BlueField-3: Link ToR switches to 400G adapters in distant racks.
- NVLink Fabrics: Optical interconnection for GPU clusters using NVLink over fiber at maximum reach.
- Hyperscale Data Centers: Long-reach rack-to-rack optical links with patch panels (up to 4 connector junctions).

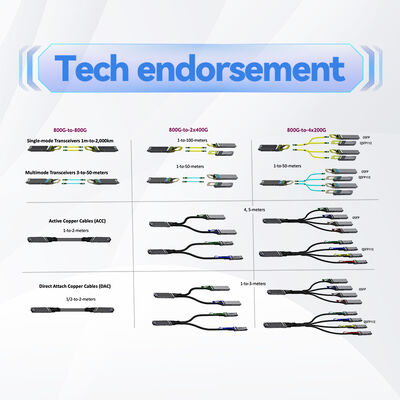

| Model | Length | Connector Type | Fiber Count | Fiber Type | Jacket | Insertion Loss |
|---|---|---|---|---|---|---|
| MFP7E10-N050 | 50 m | MPO-12/APC female | 8 active + 4 inactive | OM4 (50/125µm) | Aqua LSZH, 3.0mm | ≤0.35 + 0.0004*50 = ≤0.37 dB |
| MFP7E10-N030 | 30 m | MPO-12/APC female | 8 active | OM4 | Aqua LSZH | ≤0.362 dB |
| MFP7E10-N010 | 10 m | MPO-12/APC female | 8 active | OM4 | Aqua LSZH | ≤0.354 dB |

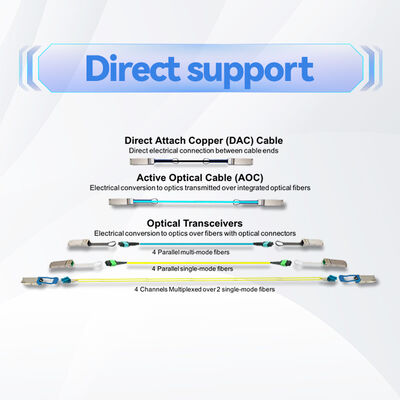

- vs. Copper Cables: Maximum reach (50m) with lower weight, better airflow, and complete EMI immunity.
- APC Polish: Superior return loss (≥35dB) compared to UPC, critical for 100G-PAM4 links over maximum distance.
- Type-B Crossover: Plug-and-play compatibility with NVIDIA transceivers—no need for manual crossover.
- OM4 Performance: Optimized for 50m reach with minimal insertion loss, supporting full 800G bandwidth.
- Clean Before Use: Always clean MPO connectors with appropriate one-click cleaners before insertion—contamination causes link errors.
- Dust Caps: Keep protective caps on until moment of installation; store caps for future use.
- ESD Awareness: Although the cable is passive, it plugs into ESD-sensitive transceivers—use grounded wrist straps.
- Bend Radius: Do not exceed 30mm bend radius; avoid tension on connectors.
- Compatibility: Verify transceiver type (APC vs UPC) before ordering—this cable is APC only.
- Patch Panels: 50m specification assumes up to 4 connector junctions; additional junctions may increase loss.
We offer 24/7 technical consultation, RMA services, and cabling infrastructure design support. Each MFP7E10-N050 is backed by a 1-year warranty and 100% factory testing. Custom lengths available for volume orders. Our inventory ensures same-day dispatch for in-stock items. Pre-sales support for transceiver compatibility verification and link budget calculation is available.
