SL Series Modular Jack RJ45 Connector with 10GbE Support IEEE 802.3bt PoE++ and Full 360-degree Shielded

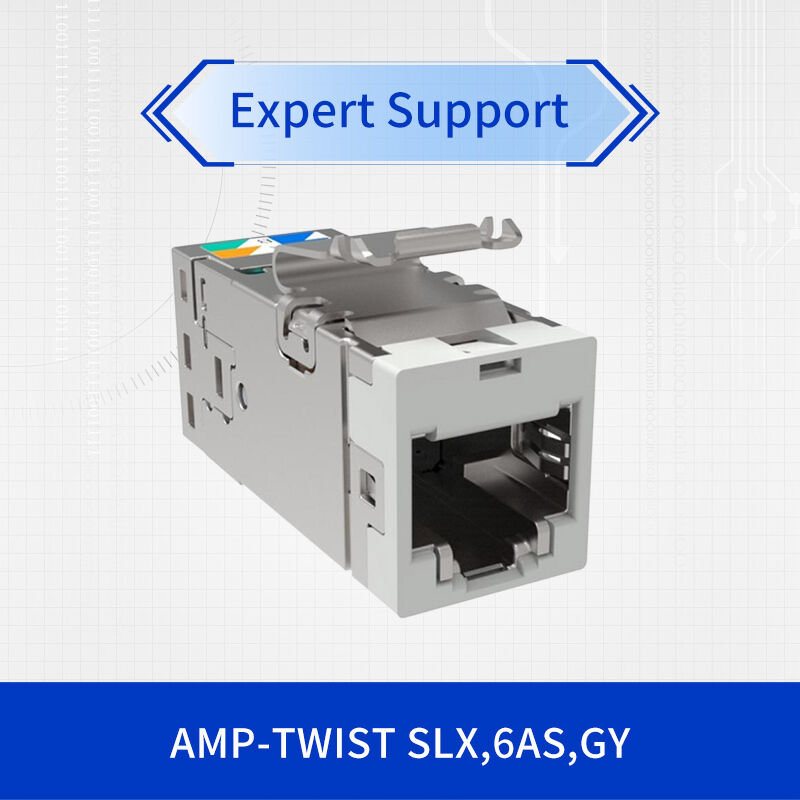

The CommScope NETCONNECT SLX-6AS-GY represents the pinnacle of shielded connectivity solutions with Category 6A performance capabilities. This advanced modular jack delivers reliable 10 Gigabit Ethernet performance up to 100 meters while providing comprehensive electromagnetic interference protection. The gray housing ensures seamless integration with SL-style gray faceplates and surface mount boxes, creating a unified professional appearance in commercial and data center environments.

This Category 6A shielded modular jack is engineered to meet the demanding requirements of modern high-speed networks, supporting frequencies up to 500 MHz. The robust construction and precision engineering ensure consistent performance in challenging environments where signal integrity is paramount. As part of the premium SLX Series, this modular jack offers superior reliability and long-term performance for critical network infrastructure.

This Category 6A shielded modular jack delivers exceptional performance with support for 10 Gigabit Ethernet transmission up to 100 meters at 500 MHz bandwidth. The advanced shielding design provides superior alien crosstalk protection and electromagnetic interference rejection, making this modular jack ideal for high-density installations where multiple cables are bundled together. The Category 6A performance ensures future-proofing for emerging network applications and higher data rates.

The precision-engineered contact design with gold-plated beryllium copper ensures optimal signal integrity across the entire frequency spectrum. This shielded modular jack maintains consistent performance characteristics through more than 3,000 mating cycles, providing long-term reliability for frequently accessed connections in data centers and commercial environments.

The SLX-6AS-GY shielded modular jack fully supports IEEE 802.3bt Type 4 Power over Ethernet applications, delivering up to 90W of power to connected devices. This Category 6A shielded modular jack is engineered to handle the increased heat generation associated with high-power PoE applications while maintaining optimal performance. The robust construction ensures reliable operation through more than 3,000 mating cycles under full electrical load conditions.

This modular jack is ideal for powering energy-intensive devices such as high-performance wireless access points, PTZ security cameras with heating elements, digital displays, and building automation equipment. The enhanced power handling capabilities make this Category 6A shielded modular jack suitable for modern smart buildings and IoT deployments requiring both high-speed data and significant power delivery.

This shielded modular jack features reliable insulation displacement contact (IDC) termination that accommodates both solid (26-22 AWG) and stranded (26-24 AWG) conductors. The modular jack supports larger cable diameters up to 8.5 mm, providing excellent compatibility with various Category 6A shielded cable types. The recommended JTT termination tool ensures precise and consistent connections for optimal performance.

Designed for seamless integration with SL Series faceplates and panels, this gray shielded modular jack provides perfect color matching with SL-style gray faceplates and surface mount boxes. The standardized panel cutout of 14.78 × 20.07 mm ensures easy installation and replacement in existing infrastructure. The modular jack's compact dimensions allow for high-density installations while maintaining proper cable management and bend radius requirements.

CommScope's SLX-6AS-GY shielded modular jack complies with the latest industry standards including ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA requirements. The product meets comprehensive global environmental regulations including RoHS, China-RoHS, UK-ROHS, and REACH-SVHC compliance. The UL 94 V-0 flammability rating ensures maximum fire safety in commercial installations.

The modular jack construction utilizes premium materials including polycarbonate and Zamak for the housing components and gold-plated beryllium copper contacts with 1.27 μm plating thickness. This material selection ensures mechanical durability, excellent electrical performance, and effective shielding throughout the product's service life. The product is RCM certified for Australian and New Zealand markets.

What is the key difference between Category 6 and Category 6A performance?
Category 6A supports 10 Gigabit Ethernet up to 100 meters with 500 MHz bandwidth, while Category 6 is limited to 10GbE up to 55 meters with 250 MHz bandwidth. This Category 6A shielded modular jack provides full 100-meter 10GbE support.

Why choose a shielded modular jack for Category 6A applications?
Shielding is particularly important for Category 6A systems to control alien crosstalk in high-density installations and provide EMI protection in electrically noisy environments, ensuring reliable 10GbE performance.

What types of environments benefit most from this modular jack?
This Category 6A shielded modular jack is ideal for data centers, healthcare facilities, industrial settings, financial institutions, and any environment requiring reliable 10GbE performance with EMI protection.

How does this jack handle high-power PoE applications?
The design incorporates enhanced thermal management and contact materials that withstand the heat generated by 90W PoE applications while maintaining performance through 3,000+ mating cycles.

Is special tooling required for installation?
Yes, the recommended JTT termination tool ensures proper IDC termination and maintains the performance characteristics required for Category 6A certified installations.

• Use the specified JTT termination tool for consistent IDC connections
• Ensure proper shield grounding continuity throughout the channel
• Maintain cable bend radius requirements for Category 6A performance
• Verify proper pair untwist length during termination (≤ 13mm)
• Test complete channel performance for 10GbE certification
• Ensure all components in the channel are Category 6A rated
• Follow manufacturer guidelines for shield termination and bonding
• Document installation details for future maintenance and troubleshooting
